Load Data

Load Data#

import os
import xarray as xr
import pandas as pd
import numpy as np
import gsw

Model#

dir_mod = '/data/local/marine-training/data/MATPEL_05/cawo_out'
paths_mod = []
for file in os.listdir(dir_mod):
    if file.endswith('nc') and 'cawo' in file:
        paths_mod.append(os.path.join(dir_mod, file))
paths_mod.sort()
ds_mod = xr.open_mfdataset(paths_mod, chunks='auto')

Argo#

path_argo_nc = '/data/local/marine-training/data/MATPEL_05/argo_data/nc_argo/GL_PR_PF_2902800.nc'
ds_argo = xr.open_dataset(path_argo_nc)

Drifter#

path_drifter_csv = '/data/local/marine-training/data/MATPEL_05/drifter_data/drifter_6hour_qc_f5dd_5de7_fd9d.csv'
df_drifter = pd.read_csv(path_drifter_csv)

Verifikasi#

Verifikasi menggunakan data Argo float#

Menyeleksi berdasarkan dimensi model#

# Ambil data
pressure = ds_argo_filtered["PRES_ADJUSTED"].values        # (n_profile, n_levels)
latitude = ds_argo_filtered["LATITUDE"].values             # (n_profile,)
longitude = ds_argo_filtered["LONGITUDE"].values           # (n_profile,)
temperature = ds_argo_filtered["TEMP_ADJUSTED"].values     # (n_profile, n_levels)
salinity = ds_argo_filtered['PSAL_ADJUSTED'].values        # (n_profile, n_levels)

# Target kedalaman yang ingin diambil
target_depths = np.abs(ds_mod.depth.values)

# Konversi tekanan ke kedalaman per profil
n_profiles = pressure.shape[0]
depth = np.empty_like(pressure)

for i in range(n_profiles):
    depth[i, :] = -gsw.z_from_p(pressure[i, :], latitude[i])

# Fungsi untuk ambil nilai variabel di kedalaman terdekat
def get_nearest_profile_values(var, depth_arr, target_depths):
    result = []
    for prof_idx in range(var.shape[0]):
        prof_values = []
        for td in target_depths:
            # Hanya pertimbangkan nilai yang tidak NaN
            valid_indices = ~np.isnan(depth_arr[prof_idx]) & ~np.isnan(var[prof_idx])
            if not np.any(valid_indices):
                prof_values.append(np.nan)  # Jika semua nilai NaN, tambahkan NaN
                continue
            valid_depth = depth_arr[prof_idx][valid_indices]
            valid_var = var[prof_idx][valid_indices]
            # Temukan indeks dengan nilai kedalaman terdekat
            idx = (np.abs(valid_depth - td)).argmin()
            prof_values.append(valid_var[idx])
        result.append(prof_values)
    return np.array(result)

# Ambil suhu pada kedalaman target
temp_at_target_depths = get_nearest_profile_values(temperature, depth, target_depths)
sali_at_target_depths = get_nearest_profile_values(salinity, depth, target_depths)
press_at_target_depths = get_nearest_profile_values(pressure, depth, target_depths)

# Buat dataframe untuk suhu pada kedalaman target
df_temp_at_model_depths = pd.DataFrame(temp_at_target_depths, columns=target_depths)
df_sali_at_model_depths = pd.DataFrame(sali_at_target_depths, columns=target_depths)
df_press_at_model_depths = pd.DataFrame(press_at_target_depths, columns=target_depths)

Mengkonversi nilai temperatur in-situ menjadi temperatur potensial#

# Ambil suhu, salinitas, dan tekanan dari DataFrame
temp = df_temp_at_model_depths.values            # (n_profiles, n_depths)
sali = df_sali_at_model_depths.values            # (n_profiles, n_depths)
press = df_press_at_model_depths.values          # (n_profiles, n_depths)

# Ambil latitude dan longitude dari profil
latitude = ds_argo_filtered["LATITUDE"].values   # (n_profiles,)
longitude = ds_argo_filtered["LONGITUDE"].values # (n_profiles,)

# Ukuran
n_profiles, n_depths = temp.shape

# Perluas latitude dan longitude agar sesuai shape (n_profiles, n_depths)
lat_2d = np.repeat(latitude[:, np.newaxis], n_depths, axis=1)
lon_2d = np.repeat(longitude[:, np.newaxis], n_depths, axis=1)

# Konversi ke Absolute Salinity (dari Practical Salinity)
SA = gsw.SA_from_SP(sali, press, lon_2d, lat_2d)

# Hitung Potential Temperature (referensi ke permukaan laut, 0 dbar)
pt = gsw.pt_from_t(SA, temp, press, p_ref=0)

# Buat DataFrame hasil
df_pt_at_model_depths = pd.DataFrame(pt, columns=target_depths)
df_pt_at_model_depths['TIME'] = pd.to_datetime(ds_argo_filtered['TIME'].values)
df_pt_at_model_depths.set_index('TIME', inplace=True)
df_pt_at_model_depths = df_pt_at_model_depths.transpose()
df_pt_at_model_depths.index.name = 'Depth (m)'
df_pt_at_model_depths.columns.name = 'Time'

Ambil data model#

# Ekstrak Data model berdasarkan lat/lon/time data obs
latitude = ds_argo_filtered['LATITUDE'].values
longitude = ds_argo_filtered['LONGITUDE'].values
argo_time = pd.to_datetime(ds_argo_filtered['TIME'].values)

mod_temps_val = []

for i, dt in enumerate(argo_time):
    argLat = latitude[i]
    argLon = longitude[i]
    ds0 = ds_mod.sel(date=dt, lat=argLat, lon=argLon, method='nearest')
    mod_temps_val.append(ds0['sw_temp'].values)

# Buat dataframe untuk suhu pada kedalaman target dari data model
df_pt_mod = pd.DataFrame(mod_temps_val, columns=np.abs(ds_mod.depth.values))
df_pt_mod['TIME'] = argo_time
df_pt_mod.set_index('TIME', inplace=True)
df_pt_mod = df_pt_mod.transpose()
df_pt_mod.index.name = 'Depth (m)'
df_pt_mod.columns.name = 'Time'

---------------------------------------------------------------------------
KeyboardInterrupt                         Traceback (most recent call last)
Cell In[8], line 12
     10     argLon = longitude[i]
     11     ds0 = ds_mod.sel(date=dt, lat=argLat, lon=argLon, method='nearest')
---> 12     mod_temps_val.append(ds0['sw_temp'].values)
     14 # Buat dataframe untuk suhu pada kedalaman target dari data model
     15 df_pt_mod = pd.DataFrame(mod_temps_val, columns=np.abs(ds_mod.depth.values))

File /opt/conda/envs/ofs/lib/python3.13/site-packages/xarray/core/dataarray.py:815, in DataArray.values(self)
    802 @property
    803 def values(self) -> np.ndarray:
    804     """
    805     The array's data converted to numpy.ndarray.
    806
   (...)    813     to this array may be reflected in the DataArray as well.
    814     """
--> 815     return self.variable.values

File /opt/conda/envs/ofs/lib/python3.13/site-packages/xarray/core/variable.py:516, in Variable.values(self)
    513 @property
    514 def values(self) -> np.ndarray:
    515     """The variable's data as a numpy.ndarray"""
--> 516     return _as_array_or_item(self._data)

File /opt/conda/envs/ofs/lib/python3.13/site-packages/xarray/core/variable.py:302, in _as_array_or_item(data)
    288 def _as_array_or_item(data):
    289     """Return the given values as a numpy array, or as an individual item if
    290     it's a 0d datetime64 or timedelta64 array.
    291
   (...)    300     TODO: remove this (replace with np.asarray) once these issues are fixed
    301     """
--> 302     data = np.asarray(data)
    303     if data.ndim == 0:
    304         kind = data.dtype.kind

File /opt/conda/envs/ofs/lib/python3.13/site-packages/dask/array/core.py:1724, in Array.__array__(self, dtype, copy, **kwargs)
   1717 if copy is False:
   1718     warnings.warn(
   1719         "Can't acquire a memory view of a Dask array. "
   1720         "This will raise in the future.",
   1721         FutureWarning,
   1722     )
-> 1724 x = self.compute()
   1726 # Apply requested dtype and convert non-numpy backends to numpy.
   1727 # If copy is True, numpy is going to perform its own deep copy
   1728 # after this method returns.
   1729 # If copy is None, finalize() ensures that the returned object
   1730 # does not share memory with an object stored in the graph or on a
   1731 # process-local Worker.
   1732 return np.asarray(x, dtype=dtype)

File /opt/conda/envs/ofs/lib/python3.13/site-packages/dask/base.py:373, in DaskMethodsMixin.compute(self, **kwargs)
    349 def compute(self, **kwargs):
    350     """Compute this dask collection
    351
    352     This turns a lazy Dask collection into its in-memory equivalent.
   (...)    371     dask.compute
    372     """
--> 373     (result,) = compute(self, traverse=False, **kwargs)
    374     return result

File /opt/conda/envs/ofs/lib/python3.13/site-packages/dask/base.py:681, in compute(traverse, optimize_graph, scheduler, get, *args, **kwargs)
    678     expr = expr.optimize()
    679     keys = list(flatten(expr.__dask_keys__()))
--> 681     results = schedule(expr, keys, **kwargs)
    683 return repack(results)

File /opt/conda/envs/ofs/lib/python3.13/queue.py:202, in Queue.get(self, block, timeout)
    200 elif timeout is None:
    201     while not self._qsize():
--> 202         self.not_empty.wait()
    203         if self.is_shutdown and not self._qsize():
    204             raise ShutDown

File /opt/conda/envs/ofs/lib/python3.13/threading.py:359, in Condition.wait(self, timeout)
    357 try:    # restore state no matter what (e.g., KeyboardInterrupt)
    358     if timeout is None:
--> 359         waiter.acquire()
    360         gotit = True
    361     else:

KeyboardInterrupt:

Hitung parameter verifikasi#

# Verifikasi temperatur potensial:
from mods import verification_metrics
metrics_verif_temp = verification_metrics(df_pt_at_model_depths, df_pt_mod)
print("Verifikasi Suhu:")
for k, v in metrics_verif_temp.items():
    print(f"{k}: {v:.3f}")

Verifikasi Suhu:
Correlation: 0.996
MAPE (%): 4.088
Bias: -0.070
RMSE: 1.019
Std Obs: 10.804
Std Model: 10.685

Verifikasi menggunakan data Drifter#

Menyeleksi data drifter#

# Data sudah terseleksi saat akuisisi, hanya perlu menyesuaikan format data dan merapihkan data tabel
# Ambil baris pertama sebagai header yang benar
new_header = np.asarray(df_drifter.columns)
df_drifter_adjs = df_drifter[1:]
df_drifter_adjs.columns = new_header

# Drop rows dengan ID, latitude, atau longitude kosong
df_drifter_adjs = df_drifter_adjs.dropna(subset=["ID", "latitude", "longitude"])

# Konversi tipe data yang diperlukan
df_drifter_adjs["ID"] = df_drifter_adjs["ID"].astype(int)
df_drifter_adjs["latitude"] = df_drifter_adjs["latitude"].astype(float)
df_drifter_adjs["longitude"] = df_drifter_adjs["longitude"].astype(float)
df_drifter_adjs["time"] = pd.to_datetime(df_drifter_adjs["time"], format="%Y-%m-%dT%H:%M:%SZ")
df_drifter_adjs["start_date"] = pd.to_datetime(df_drifter_adjs["start_date"], format="%Y-%m-%dT%H:%M:%SZ")
df_drifter_adjs["deploy_date"] = pd.to_datetime(df_drifter_adjs["deploy_date"], format="%Y-%m-%dT%H:%M:%SZ")
df_drifter_adjs["end_date"] = pd.to_datetime(df_drifter_adjs["end_date"], format="%Y-%m-%dT%H:%M:%SZ")
df_drifter_adjs["drogue_lost_date"] = pd.to_datetime(df_drifter_adjs["drogue_lost_date"], format="%Y-%m-%dT%H:%M:%SZ")

# Ambil ID unik
unique_ids = df_drifter_adjs["ID"].unique()

Memilih data berdasarkan ID#

df_drifter2verif = df_drifter_adjs.loc[df_drifter_adjs['ID'] == 300234061473430][['ID', 'time', 'latitude', 'longitude', 'sst']]
df_drifter2verif['time'] = pd.to_datetime(df_drifter2verif['time']).dt.normalize()  # Atau .dt.strftime('%Y-%m-%d')
df_drifter2verif.set_index(['time'], inplace=True)

Ambil data model#

# Ekstrak Data model berdasarkan lat/lon/time data drifter
lons, lats = df_drifter2verif['longitude'].values, df_drifter2verif['latitude'].values
drf_time = pd.to_datetime(df_drifter2verif.index.values)

mod_temps_val = []
mod_tms = []

for i, dt in enumerate(drf_time):
    drfLat = lats[i]
    drfLon = lons[i]
    ds0 = ds_mod.sel(date=dt.strftime('%Y-%m-%d'), depth=0., lat=drfLat, lon=drfLon, method='nearest')
    mod_temps_val.append(ds0['sw_temp'].values)
    mod_tms.append(ds0.date.values)

# Buat dataframe untuk suhu pada kedalaman target dari data model
df_mod_temp = pd.DataFrame(
    data={
        'time': pd.to_datetime(mod_tms),
        'latitude': lats,
        'longitude': lons,
        'sst': mod_temps_val
    }
)
df_mod_temp.set_index(['time'], inplace=True)

df_drifter2verif['sst'] = df_drifter2verif['sst'].astype(float)
df_mod_temp['sst'] = df_mod_temp['sst'].astype(float)

metrics_verif_temp_drifter = verification_metrics(df_drifter2verif, df_mod_temp)
print("Verifikasi Suhu:")
for k, v in metrics_verif_temp_drifter.items():
    print(f"{k}: {v:.3f}")

Verifikasi Suhu:
Correlation: 1.000
MAPE (%): 0.632
Bias: 0.184
RMSE: 0.392
Std Obs: 66.363
Std Model: 66.299

Visualisasi hasil verifikasi#

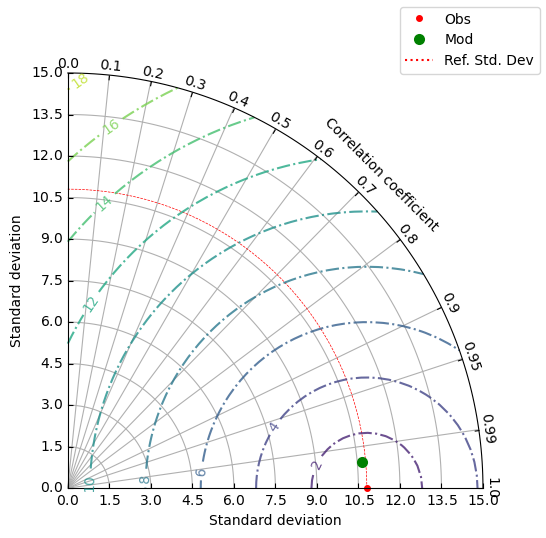

Membuat Taylor Diagram untuk visualisasi verifikasi Model dan Argo#

from mods import TaylorDiagram
from matplotlib.lines import Line2D
import matplotlib.pyplot as plt

ccorr = 0.996
stdv_mod = 10.685
stdv_arg = 10.804

fig = plt.figure(figsize=(5.5,5.5))
dia = TaylorDiagram(stdv_arg, fig=fig, rect=111, label='', grid=True)
dia.add_sample(stdv_arg, 1, label="Obs", marker=".", ls="", mec="red", mfc="red", mew=2)
dia.add_sample(stdv_mod, ccorr, label=f"Mod", marker="o", ls="", mfc="green", mec="none", markersize=8)
ref_line = Line2D([0], [0], color="red", linestyle=":")
handles = dia.samplePoints + [ref_line]
labels = [p.get_label() for p in dia.samplePoints] + ["Ref. Std. Dev"]
fig.legend(handles[1:], labels[1:], numpoints=1, prop=dict(size="medium"))
contours = dia.add_contours()
plt.clabel(contours, inline=1, fontsize=10)
plt.show()

../_images/2d8fb21b7654012c1ea685df40efa0173a79755386e96a5f07f840e04f7427cf.png

Load Data

Contents

Load Data#

Model#

Argo#

Drifter#

Verifikasi#

Verifikasi menggunakan data Argo float#

Menyeleksi Data Berdasarkan QC dan Wilayah Indonesia#

Menyeleksi berdasarkan dimensi model#

Mengkonversi nilai temperatur in-situ menjadi temperatur potensial#

Ambil data model#

Hitung parameter verifikasi#

Verifikasi menggunakan data Drifter#

Menyeleksi data drifter#

Memilih data berdasarkan ID#

Ambil data model#

Visualisasi hasil verifikasi#

Membuat Taylor Diagram untuk visualisasi verifikasi Model dan Argo#
